라즈베리파이 openCV 설치 및 관절 인식

https://www.raspberrypi.org/downloads/raspbian/

Download Raspbian for Raspberry Pi

라즈베리파이 설치

• RASPBIAN STRETCH WITH DESKTOP AND RECOMMENDED SOFTWARE : LibreOffice, Scratch, SonicPi, Thonny, Mathematica 등 포함
• RASPBIAN STRETCH WITH DESKTOP : Chromium browser, VLC media player, Python 등 포함
• RASPBIAN STRETCH LITE : DESKTOP GUI 없는 버전

https://www.balena.io/etcher/

balena - The complete IoT fleet management platform



flash 클릭!



라즈베리의 초기 id 와 암호는

id : pi

passwd : raspberry



혹시 와이파이가 안되면

Preference>Raspberry Pi Configuration>Localisiation

에서 GB나 US등도 선택해보기 바람.



sudo apt install fonts-nanum fonts-nanum-extra

sudo apt install nabi

sudo apt install im-config



혹시 한글이 잘 안되면 아래 링크 참조

https://rpie.tistory.com/1

라즈베리파이 라즈비안 OS : 설치 후 한글 폰트 설치 및 한글 입력기 설정 방법

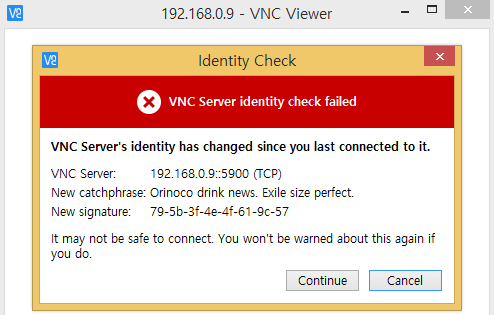

vncserver -geometry 1280x1024



---

CCTV 만들기



우선 open cv 를 설치해야 하는데 아래 두 링크를 참고해서 설치하면 된다.



https://webnautes.tistory.com/916

Raspberry Pi 3에 Extra Module(contrib) 포함하여 OpenCV 4.1.2 설치하는 방법

https://www.alatortsev.com/2018/09/05/installing-opencv-3-4-3-on-raspberry-pi-3-b/

Installing OpenCV 3.4.3 on Raspberry Pi 3 Model B+

아래는 설치에 쓰이는 코드인데 치기 귀찮아서 복사해둔 코드다.



cmake -D CMAKE_BUILD_TYPE=RELEASE \
-D CMAKE_INSTALL_PREFIX=/usr/local \
-D WITH_TBB=OFF \
-D WITH_IPP=OFF \
-D WITH_1394=OFF \
-D BUILD_WITH_DEBUG_INFO=OFF \
-D BUILD_DOCS=OFF \
-D INSTALL_C_EXAMPLES=ON \
-D INSTALL_PYTHON_EXAMPLES=ON \
-D BUILD_EXAMPLES=OFF \
-D BUILD_TESTS=OFF \
-D BUILD_PERF_TESTS=OFF \
-D ENABLE_NEON=ON \
-D ENABLE_VFPV3=ON \
-D WITH_QT=OFF \
-D WITH_GTK=ON \
-D WITH_OPENGL=ON \
-D OPENCV_ENABLE_NONFREE=ON \
-D OPENCV_EXTRA_MODULES_PATH=../../opencv_contrib-4.1.2/modules \
-D WITH_V4L=ON \
-D WITH_FFMPEG=ON \
-D WITH_XINE=ON \
-D ENABLE_PRECOMPILED_HEADERS=OFF \
-D BUILD_NEW_PYTHON_SUPPORT=ON \
-D OPENCV_GENERATE_PKGCONFIG=ON ../



https://www.youtube.com/watch?v=DIGwweDJCBk



https://www.youtube.com/watch?v=WgsZc_wS2qQ





pip3 install imutils

pip3 install imagezmq



client.py

import socket
import time
from imutils.video import VideoStream
import imagezmq

sender = imagezmq.ImageSender(connect_to='tcp://<서버 내부 IP>:5555')

rpi_name = socket.gethostname() # send RPi hostname with each image

picam = VideoStream(usePiCamera=True).start()
time.sleep(2.0)  # allow camera sensor to warm up

while True:  # send images as stream until Ctrl-C
  image = picam.read()
  sender.send_image(rpi_name, image)



pip install imagezmq

import imagezmq



conda install -c conda-forge imutils



server.py

import cv2
import imagezmq

image_hub = imagezmq.ImageHub()

while True:
  rpi_name, image = image_hub.recv_image()

  cv2.imshow(rpi_name, image)
  if cv2.waitKey(1) == ord('q'):
    break

  image_hub.send_reply(b'OK')

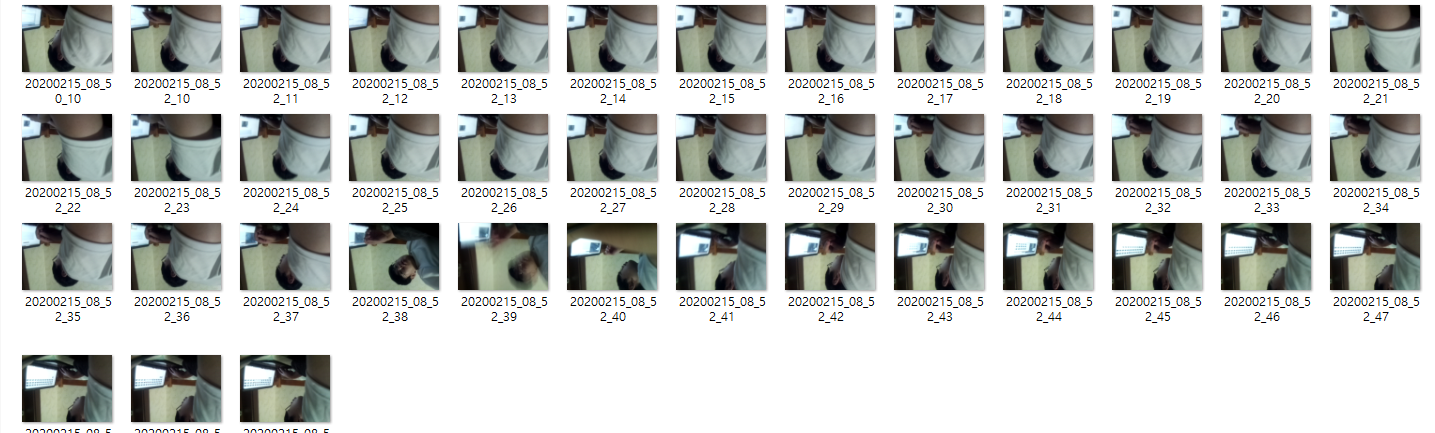

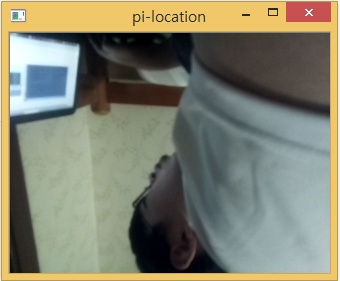

아래와 같이 cctv 가 잘 나온다고 하면 이제 사진을 저장해보자.







import cv2
import imagezmq
from time import gmtime, strftime

image_hub = imagezmq.ImageHub()

while True:
  rpi_name, image = image_hub.recv_image()

  image2= cv2.resize(image, dsize=(640, 480), interpolation=cv2.INTER_AREA)
  cv2.imshow(rpi_name, image2)

  imgfile='D:/image/'+strftime("%Y%m%d_%H_%M_%S", gmtime())+'.png'
  cv2.imwrite(imgfile, image2)

  if cv2.waitKey(1) == ord('q'):
    break

  image_hub.send_reply(b'OK')

저장한 자료를 바탕으로 관절을 인식하는 코드

import torch
import torchvision
from torchvision import models
import torchvision.transforms as T

import numpy as np
from PIL import Image
import matplotlib.pyplot as plt
from matplotlib.path import Path
import matplotlib.patches as patches

print('pytorch', torch.__version__)
print('torchvision', torchvision.__version__)

IMG_SIZE = 480
THRESHOLD = 0.95


model = models.detection.keypointrcnn_resnet50_fpn(pretrained=True).eval()

import os
d_list='D:/image/'
for ls in os.listdir(d_list):
    print(ls)
    img = Image.open(d_list+ls)
    img = img.resize((IMG_SIZE, int(img.height * IMG_SIZE / img.width)))

    plt.figure(figsize=(16, 16))
    #plt.imshow(img)


    trf = T.Compose([
        T.ToTensor()
    ])

    input_img = trf(img)
    out = model([input_img])[0]
    codes = [Path.MOVETO,Path.LINETO,Path.LINETO]
    fig, ax = plt.subplots(1, figsize=(16, 16))
    ax.imshow(img)

    for box, score, keypoints in zip(out['boxes'], out['scores'], out['keypoints']):
        score = score.detach().numpy()

        if score < THRESHOLD:
            continue

        box = box.detach().numpy()
        keypoints = keypoints.detach().numpy()[:, :2]

        rect = patches.Rectangle((box[0], box[1]), box[2]-box[0], box[3]-box[1], linewidth=2, edgecolor='b', facecolor='none')
        ax.add_patch(rect)

        # 17 keypoints
        for k in keypoints:
            circle = patches.Circle((k[0], k[1]), radius=2, facecolor='r')
            ax.add_patch(circle)

        # draw path
        # left arm
        path = Path(keypoints[5:10:2], codes)
        line = patches.PathPatch(path, linewidth=2, facecolor='none', edgecolor='r')
        ax.add_patch(line)

        # right arm
        path = Path(keypoints[6:11:2], codes)
        line = patches.PathPatch(path, linewidth=2, facecolor='none', edgecolor='r')
        ax.add_patch(line)

        # left leg
        path = Path(keypoints[11:16:2], codes)
        line = patches.PathPatch(path, linewidth=2, facecolor='none', edgecolor='r')
        ax.add_patch(line)

        # right leg
        path = Path(keypoints[12:17:2], codes)
        line = patches.PathPatch(path, linewidth=2, facecolor='none', edgecolor='r')
        ax.add_patch(line)
    plt.savefig('D:/model_output/'+ls)



아래와 같이 나타나면 성공



open cv와 결합해서 자동 디텍션은 추후 포스팅하는 걸로 하겠다.
